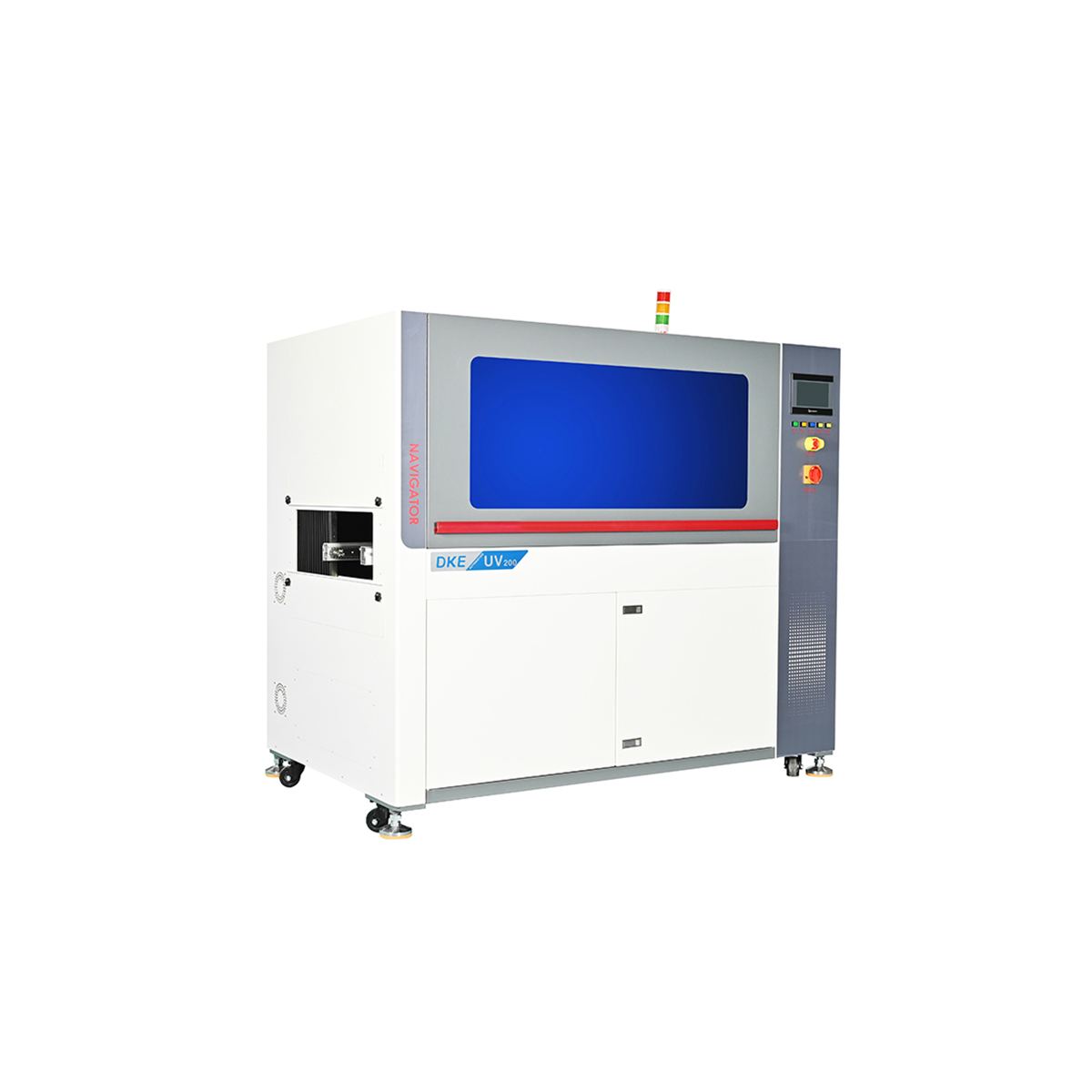

DK-UV200 UV Curing Oven
Key Features
- High-intensity UV curing for instant coating hardening
- Multiple UV lamp configuration for uniform exposure
- Adjustable UV intensity and exposure time
- Efficient cooling system for lamp longevity
- Shielded design for operator UV protection
- Low temperature curing suitable for heat-sensitive components
Technical Specifications
| Model | DK-UV200 |
| UV Light Source | High-pressure mercury lamp / LED UV |
| Wavelength | 365 nm (or customizable) |
| UV Intensity | 80-120 mW/cm² |
| Curing Width (Max) | 400 mm |
| Conveyor Speed | 0.5-5 m/min |
| Cooling Method | Forced air cooling |
| Power Supply | AC220V 50/60Hz |
| Power Rating | 6 kW |
| Dimensions | L1500 x W1000 x H1400 mm |
