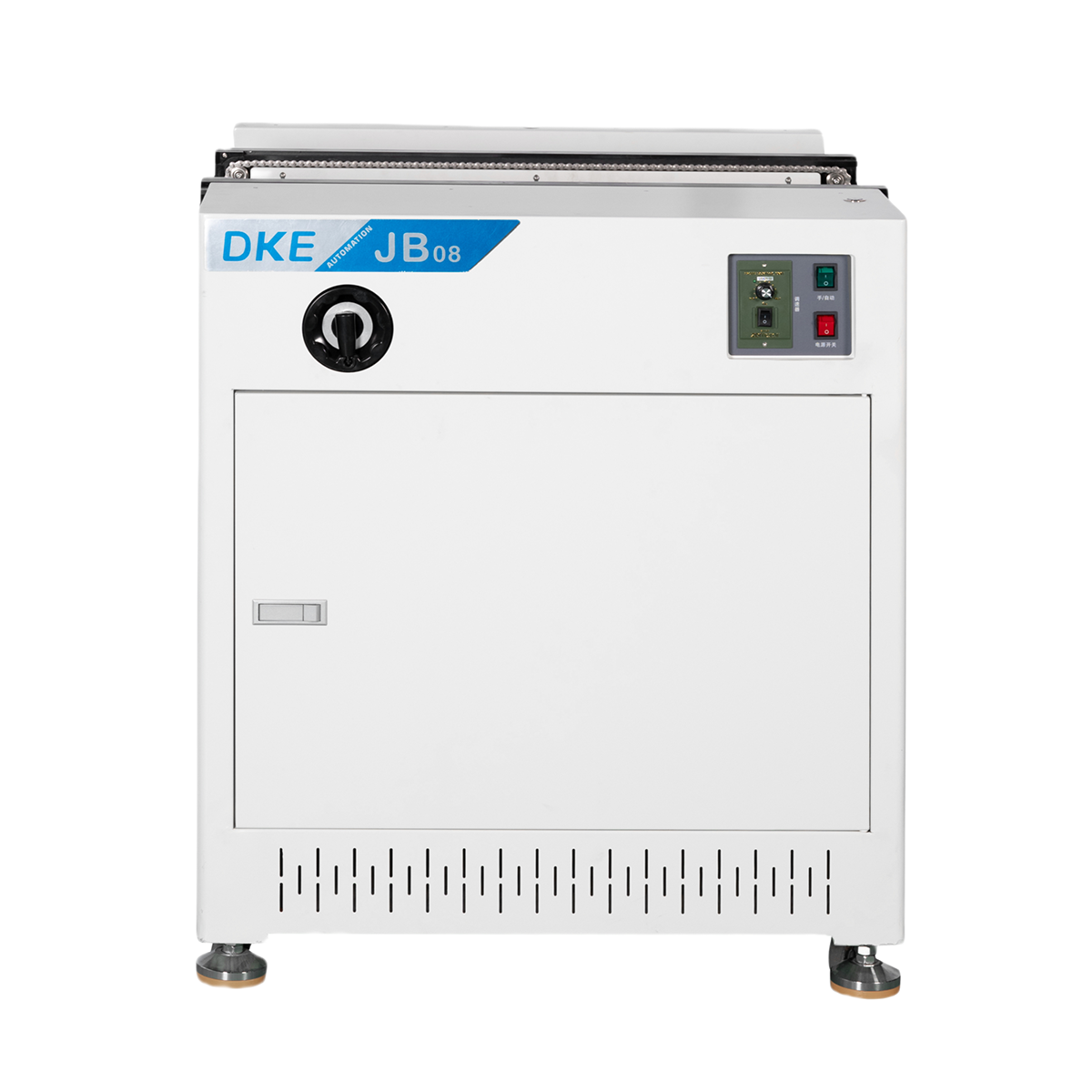

DK-JB450 Automatic Buffer Conveyor
Key Features
- Automatic board buffering for production line flow management
- Adjustable storage capacity for different line speeds
- Smooth board handling prevents component displacement
- Intelligent load/unload sequence optimization
- SMEMA compatible for seamless integration
- Compact footprint with high storage density
Technical Specifications
| Model | DK-JB450 |
| PCB Size | 50 x 50 - 450 x 450 mm |
| Storage Capacity | Up to 15 boards |
| Conveyor Speed | 1-5 m/min |
| Conveyor Height | 900 ± 20 mm |
| Interface | SMEMA compatible |
| Power Supply | AC220V 50/60Hz |
| Dimensions | L1000 x W940 x H1350 mm |
| Weight | ~200 kg |
×
