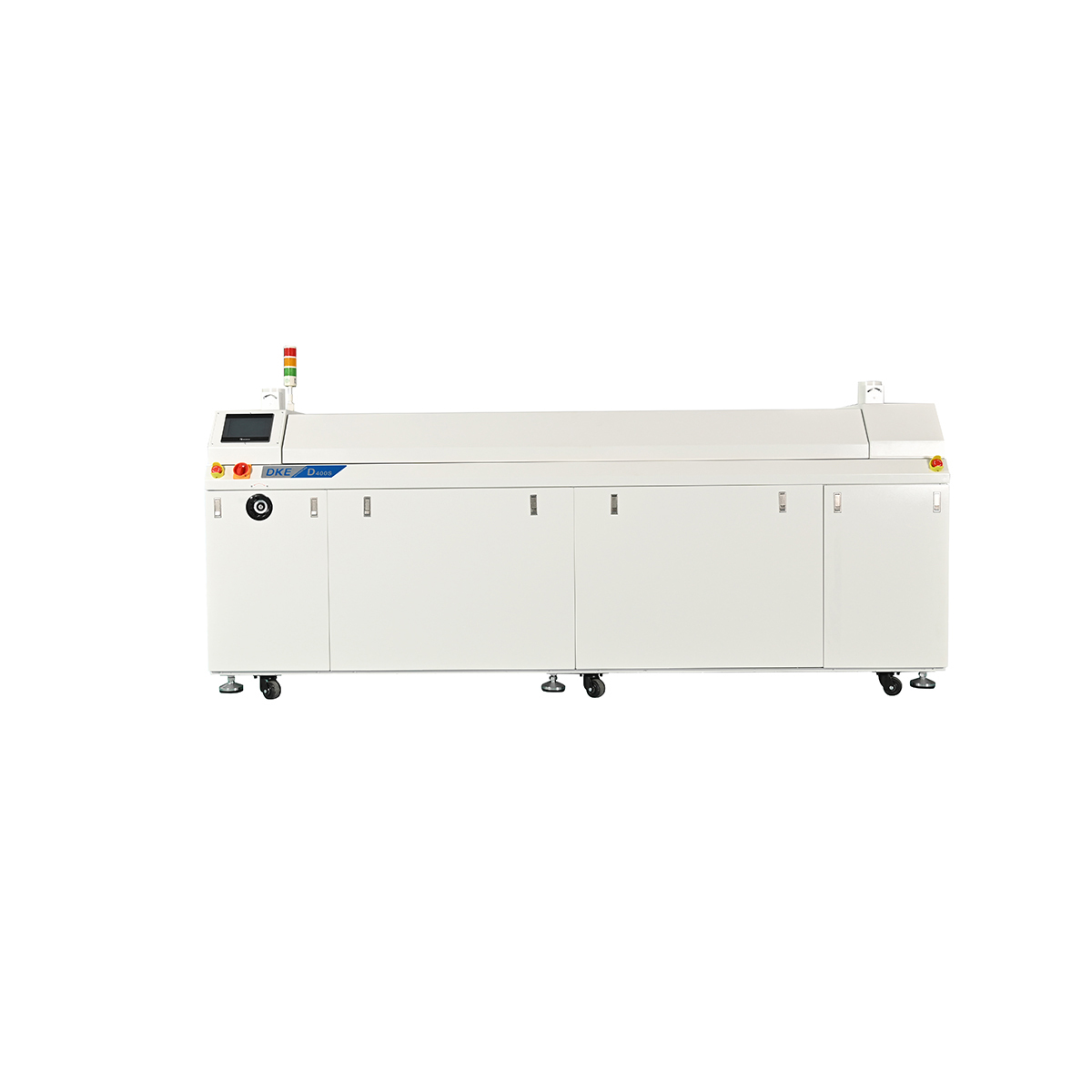

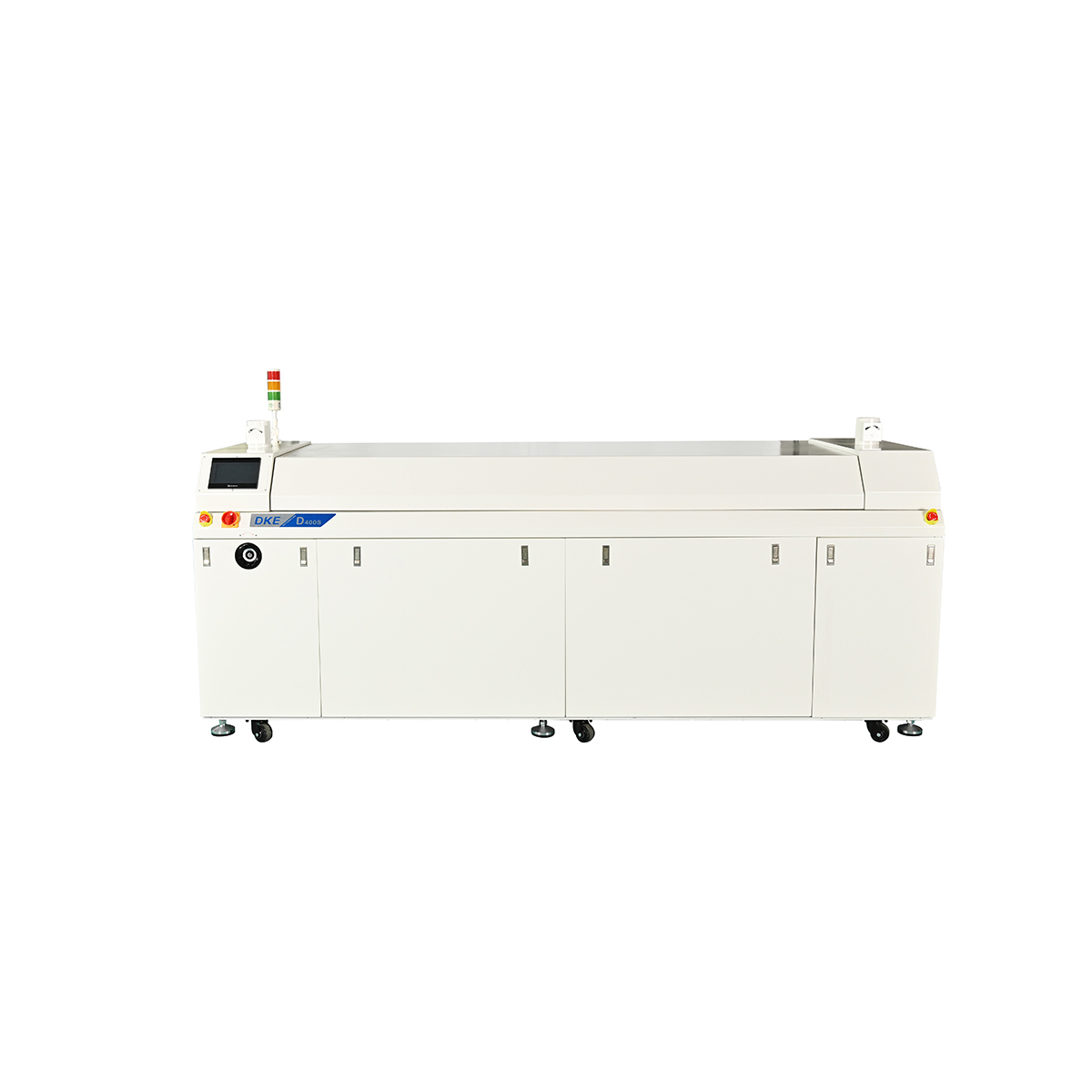

DK-G300S Infrared Curing Oven
Key Features
- Infrared heating technology for efficient coating curing
- Precise temperature control with multi-zone regulation
- Uniform heat distribution for consistent curing results
- Energy-saving design with insulated chamber
- Adjustable conveyor speed for variable curing times
- Over-temperature protection for safe operation
Technical Specifications
| Model | DK-G300S |
| Heating Method | Infrared (IR) |
| Temperature Range | Room temp - 150°C |
| Temperature Accuracy | ±2°C |
| PCB Width (Max) | 450 mm |
| Heating Zones | 3 (independently controlled) |
| Conveyor Speed | 0.5-5 m/min |
| Power Supply | AC380V 50/60Hz |
| Power Rating | 12 kW |
| Dimensions | L2000 x W1100 x H1500 mm |
