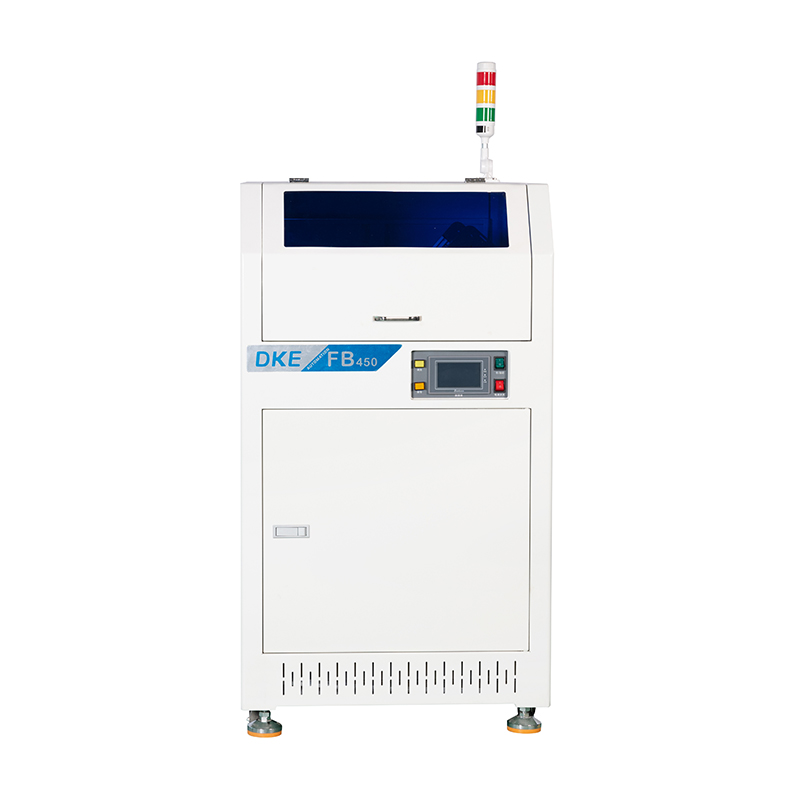

FB Series Automatic PCB Flipper
Key Features
- Automatic board flipping for double-sided production
- Adjustable width for different PCB sizes
- Smooth pneumatic flipping mechanism
- Compact and robust construction
- Easy integration with existing conveyor lines
- Low maintenance design
Technical Specifications
| Model | FB Series |
| PCB Width | Min 50 mm, Max 450 mm |
| Flipping Time | ~3 seconds |
| Conveyor Speed | 1-5 m/min |
| Conveyor Height | 900 ± 20 mm |
| Interface | SMEMA compatible |
| Power Supply | AC220V 50/60Hz |
| Dimensions | L600 x W900 x H1200 mm |
| Weight | ~150 kg |
×
