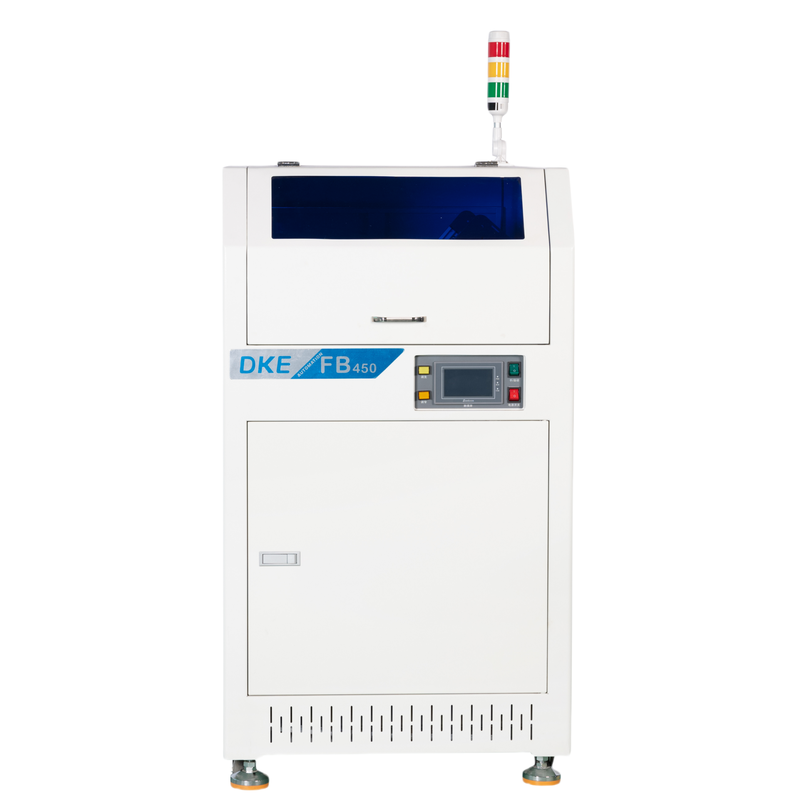

DK-FB450 Automatic PCB Board Flipper
Key Features
- Automatic 180° PCB flipping for double-sided processing
- Gentle handling mechanism prevents component damage
- Adjustable flipping speed for different board types
- Smooth transition between conveyor sections
- Compatible with SMEMA standard interface
- Compact design saves floor space
Technical Specifications
| Model | DK-FB450 |
| PCB Size | 50 x 50 - 450 x 450 mm |
| Flipping Time | ~3 seconds |
| Conveyor Speed | 1-5 m/min |
| Conveyor Height | 900 ± 20 mm |
| Interface | SMEMA compatible |
| Power Supply | AC220V 50/60Hz |
| Dimensions | L700 x W940 x H1350 mm |
| Weight | ~180 kg |
