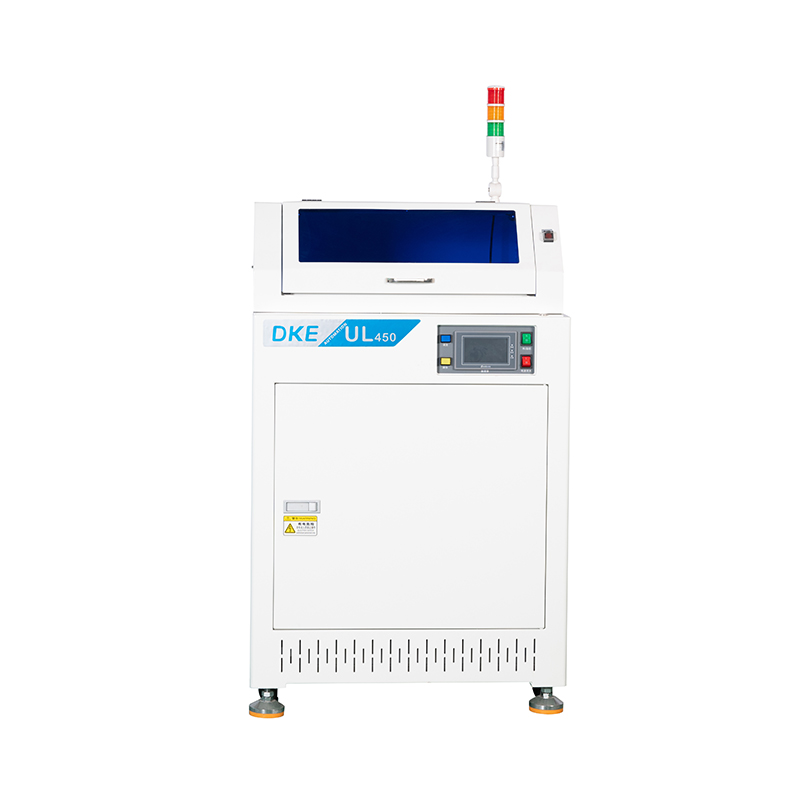

UL Series Automatic PCB Elevator
Key Features
- Automatic vertical board transfer between production levels
- Smooth lifting mechanism with servo control
- Adjustable lift height for various line configurations
- Board presence detection for safe operation
- SMEMA compatible for easy integration
- Safety interlocks prevent operation errors
Technical Specifications
| Model | UL Series |
| PCB Width | Min 50 mm, Max 450 mm |
| Total Lift Travel | 550 ± 20 mm |
| Lower Working Height | 350 ± 20 mm |
| Upper Working Height | 550 ± 20 mm |
| Conveyor Speed | 1-5 m/min |
| Interface | SMEMA compatible |
| Power Supply | AC220V 50/60Hz |
| Dimensions | L700 x W940 x H1350 mm |
×
