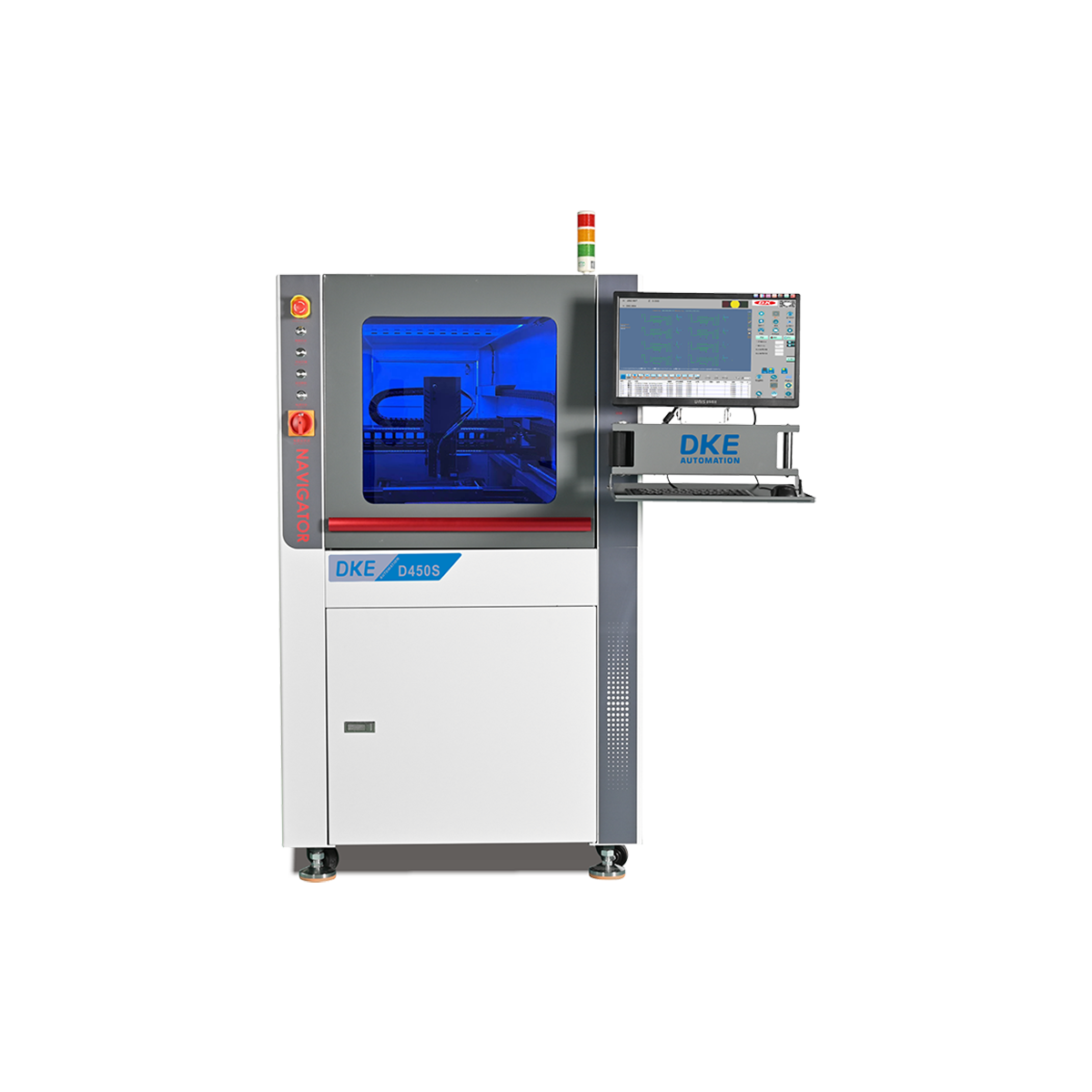

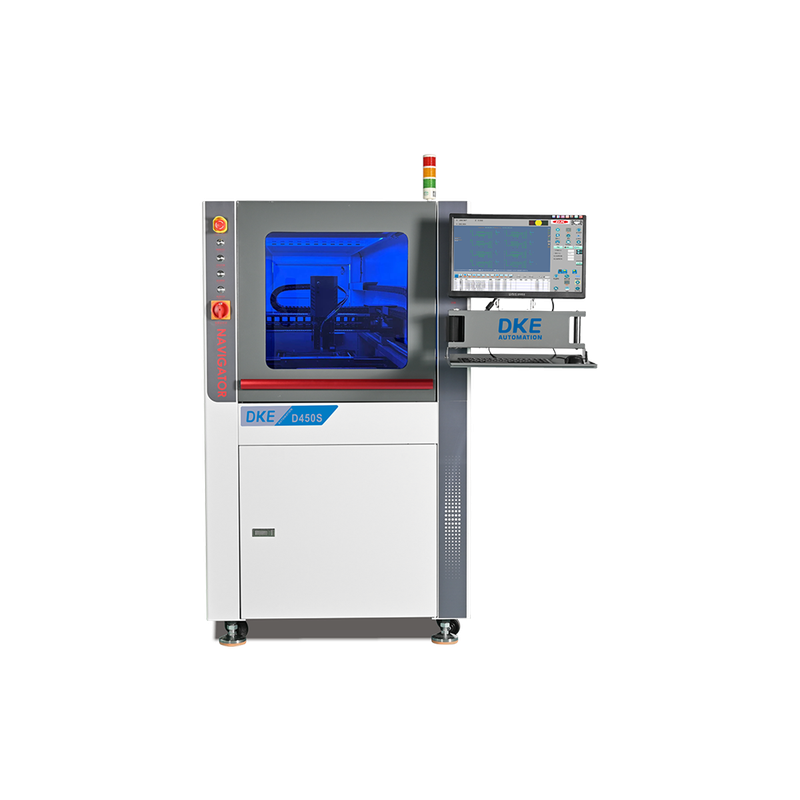

DK-D450S Full Vision High-Speed Dispensing Machine
Key Features
- Full vision system for precise alignment and inspection
- High-speed dispensing for conformal coating applications
- Automatic fiducial recognition for board position compensation
- Intelligent glue path planning for optimal coverage
- Real-time dispensing monitoring with width detection
- Support for multiple coating materials (silicone, acrylic, urethane)
Technical Specifications
| Model | DK-D450S |
| PCB Size (Max) | 450 x 450 mm |
| Dispensing Speed | Up to 800 mm/s |
| Positioning Accuracy | ±0.02 mm |
| Vision System | HD camera with auto-focus |
| Resolution | 20 µm/pixel |
| Conveyor Height | 900 ± 20 mm |
| Power Supply | AC220V 50/60Hz |
| Dimensions | L1300 x W1400 x H1650 mm |
| Weight | ~450 kg |
