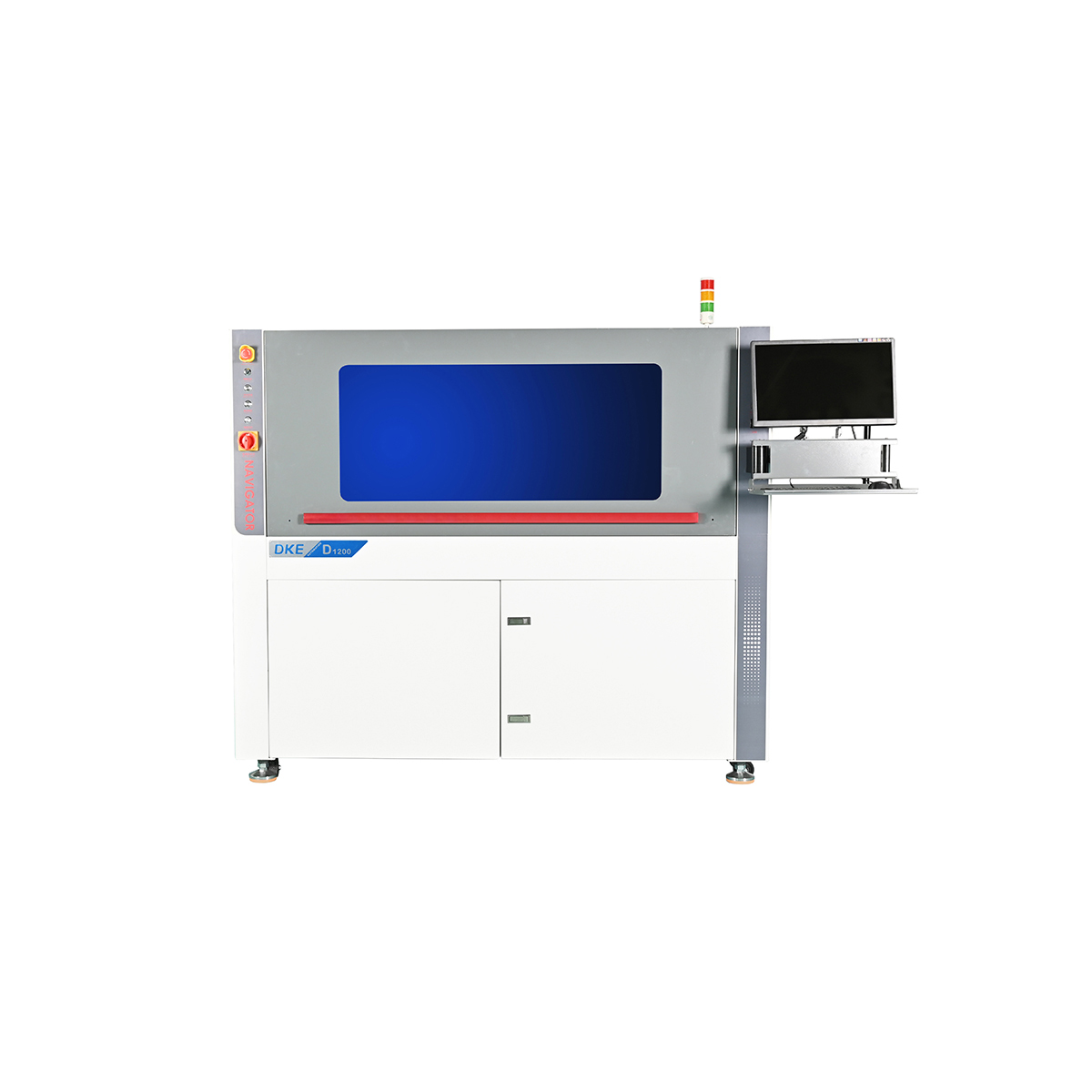

DK-D1200S High-Speed Dispensing Machine
Key Features
- High-speed dispensing for efficient conformal coating application
- Precision volumetric control for consistent glue deposition
- Large work area accommodating various PCB sizes
- Vision alignment system for accurate positioning
- Automatic weight calibration for dispensing quality control
- Multi-nozzle support for increased throughput
Technical Specifications
| Model | DK-D1200S |
| PCB Size (Max) | 1200 x 450 mm |
| Dispensing Speed | Up to 1200 mm/s |
| Positioning Accuracy | ±0.05 mm |
| Dispensing Volume | 0.001-50 ml (programmable) |
| Conveyor Height | 900 ± 20 mm |
| Power Supply | AC220V 50/60Hz |
| Air Supply | 0.5-0.7 MPa |
| Dimensions | L1600 x W1300 x H1650 mm |
| Weight | ~550 kg |
