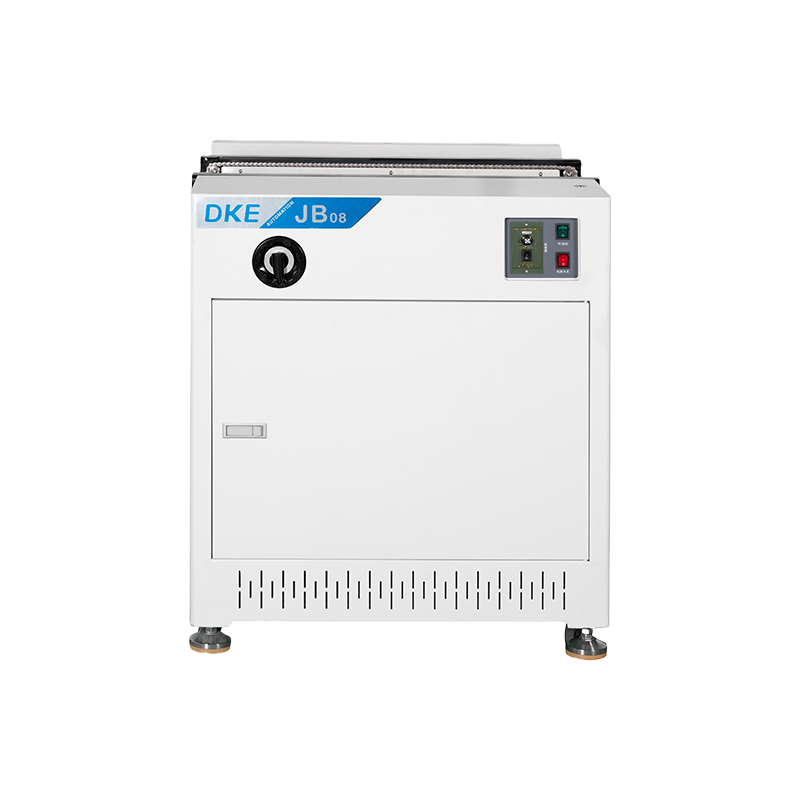

JB Series Automatic Buffer Conveyor
Key Features
- Automatic board transfer between production machines
- Adjustable conveyor width for different PCB sizes
- Smooth belt drive for stable board transport
- Photoelectric sensor for board presence detection
- SMEMA compatible interface
- Quiet operation with low power consumption
Technical Specifications
| Model | JB Series |
| PCB Width | Min 50 mm, Max 450 mm |
| Conveyor Speed | 1-5 m/min |
| Transport Direction | Left to Right (or configurable) |
| Conveyor Height | 900 ± 20 mm |
| Interface | SMEMA compatible |
| Power Supply | AC220V 50/60Hz |
| Dimensions | L700 x W940 x H1350 mm |
| Weight | ~100 kg |
