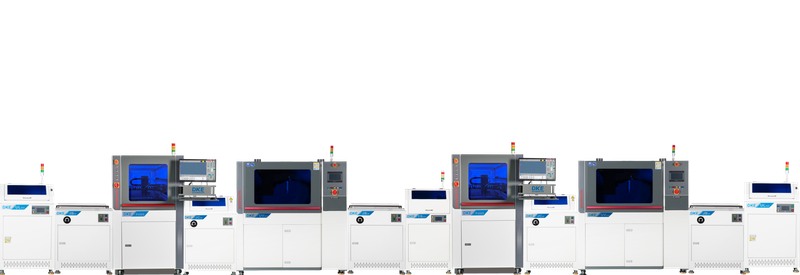

DKE-AOI450 Coating Inspection AOI
Inspection Capability
- High-resolution 5MP camera for coating inspection
- Detects missing coating, excessive glue, bubbles, pinholes
- 20 µm/pixel resolution for fine defect detection
- Automated pass/fail decision with statistical reporting
- Inline integration with conformal coating production line
- Real-time quality data feedback for process control
Technical Specifications
| Test Parameters | Capacitance, DF, IR, Dielectric Strength |
| Capacitance Range | 0.1 pF - 100 µF |
| Test Frequency | 1 kHz / 1 MHz (selectable) |
| Measurement Accuracy | ±0.05% |
| Testing Speed | Up to 5000 pcs/hour |
| Component Size | 0402 - 2220 (MLCC) |
| Handling Method | Automatic vibration feeder + rotary table |
| Power Supply | AC220V 50/60Hz |
| Interface | RS-232 / USB data export |
